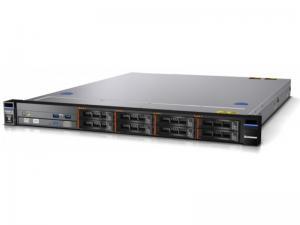

Thông số kỹ thuật của máy chủ Server Lenovo x3250 M6 (3633G2A)
Form factor/height | 1U Rack |
Processor (std/max) | Xeon 4C E3-1270v5 80W 3.6GHz 2133MHz/up to 8MB |
Memory (std/max) | Up to 64GB of 2133MHz TruDDR4 ECC UDIMMs (4 slots) |
Disk bays | 4 x 3.5-inch hot-swap/simple-swap or 8 x 2.5-inch hot-swap/simple-swap |
RAID support | Software RAID 0/1/10/5; opt. hardware RAID 0/1/10/5/6 via M1210 (6Gbps or 12Gbps) or M5200 series (6Gbps or 12Gbps) |
Power supply (std/max) | One fixed 300W 80 PLUS Gold; or two hot-swap redundant 460W 80 PLUS Gold / Energy Star 2.0 |
USB Ports/VGA Ports | Up to 2 x USB 3.0 front, 2 x USB 3.0 rear, 1 x USB 3.0 interior |
Hot-swap components | HDDs, SSDs, 460W PSUs |
Network interface controller (NIC) Trusted platform module (TPM) | 2 x GbE ports (1 shared with systems management); opt. single- or dual-port 10GbE adapter |
Expansion Slots | 2 PCIe 3.0 (one reserved for optional M1210 RAID controller) |
Maximum internal storage | 24TB 3.5-inch hot-swap SAS/SATA HDDs; 16TB 3.5-inch simple-swap SATA HDDs; 16TB 2.5-inch hot-swap/simple-swap SATA HDDs; 16TB 2.5-inch hot-swap SAS/SATA HDDs; or 6.4TB hot-swap SATA SSDs |
Systems management | Lenovo XClarity Administrator with mobile option, Lenovo XClarity Pro software bundle, IMM 2.1, shared GbE port |
Operating systems supported | Microsoft Windows Server, SUSE Linux; Red Hat Enterprise Linux; Ubuntu (tested and certified); VMware ESXi |
Limited warranty | 3-year parts and labor or 1-year parts and labor |
