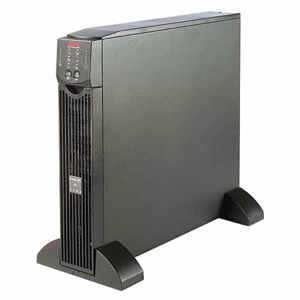

Bộ lưu điện Smart-ups APC SURT1000XLI RT 1000VA :
APC Smart-UPS RT
- Công suất 700 Watts / 1000 VA
- Đầu vào / đầu ra 230V
- Giao diện cổng DB-9 RS-232, SmartSlot
- Thời gian lưu điện: Chạy bán tải 24.4 phút (350 Watts) / Chạy toàn tải 10.2 phút (700 Watts).
Có khả năng mở rộng thời gian lưu điện
- Công nghệ Double Conversion Online
- Xuất xứ của bộ lưu điện SURT1000XLI : Philippines/India
- Bảo hành : 2 năm
| Output | • Output Power Capacity: 700 Watts / 1000 VA
• Max Configurable Power: 700 Watts / 1000 VA
• Nominal Output Voltage: 230V
• Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
• Output Voltage Distortion: Less than 5% at full load
• Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal
• Crest Factor: up to 3 : 1
• Waveform Type: Sine wave
• Output Connections: (6) IEC 320 C13, (2) IEC Jumpers |
| Input | • Nominal Input Voltage: 230V
• Input Frequency: 50/60 Hz +/- 5 Hz (auto sensing)
• Input Connections: IEC-320 C14
• Input voltage range for main operations: 160 - 280V
• Input voltage adjustable range for mains operation: 100 - 280V |
| Bateries & Runtime | • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time: 3 hour(s)
• RBC™ Quantity: 1
• Typical Backup Time at Half Load: 24.4 minutes (350 Watts)
• Typical Backup Time at Full Load: 10.2 minutes (700 Watts) |
| Communications & Management | • Interface Port(s): DB-9 RS-232,SmartSlot
• Available SmartSlot™ Interface Quantity: 1
• Control panel: LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
• Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Emergency Power Off (EPO): Optional |
| Physical | • Dimensions: 432.00 mm x 85.00 mm x 483.00 mm
• Weight: 23.00 KG
• Rack Height: 2U |
| Environmental | • Operating Environment: 0 - 40 °C
• Operating Relative Humidity: 0 - 95%
• Operating Elevation: 0-3000 meters
• Storage Temperature: 20 - 50 °C
• Storage Relative Humidity: 0 - 95%
• Storage Elevation: 0-15000 meters
• Audible noise at 1 meter from surface of unit: 50.00 dBA
• Online Thermal Dissipation: 239.00 BTU/hr |
| Conformance | • Regulatory Approvals: C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 60950,EN 61000-3-2,GOST,VDE
• Standard Warranty: 2 years repair or replace,optional on-site warranties available,optional extended warranties available |
