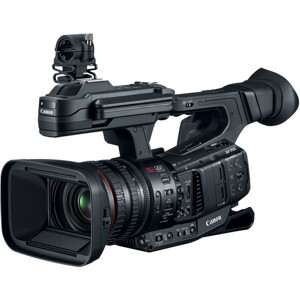

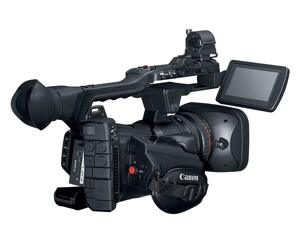

Giới thiệu: Máy quay Canon XF705
Chi Tiết Standard Definition or High Definition 4K Ultra High Definition POWER SUPPLY (RATED) 14.4V DC (Battery Pack), 24.0V DC (DC IN) VIDEO RECORDING SYSTEM Compression: H.265/HEVC or MPEG-4 AVC/H.264 Color Sampling: 4:2:2 (10-bit) or 4:2:0 (8-bit) File Format: MXF Recording Modes: XF-HEVC 160 Mbps/110 Mbps: 3840x2160 (60p/30p/24p) XF-HEVC 60 Mbps/45Mbps: 1920x1080 (60p/30p/24p) XF-AVC 45 Mbps: 1920x1080 (60p/30p/24p) AUDIO RECORDING SYSTEM LPCM (24-bit 4ch), 48 kHz IMAGE SENSOR 1.0-inch CMOS TOTAL PIXELS Approx. 13.4 megapixels (4268 x 3148) EFFECTIVE PIXELS Approx. 8.29 megapixels (3840 x 2160) MAXIMUM RECORDING TIME 32GB card 160 Mbps: 25 min. 110 Mbps: 35 min. 60 Mbps: 65 min. 45 Mbps: 90 min.
64GB card 160 Mbps: 50 min. 110 Mbps: 75 min. 60 Mbps: 140 min. 45 Mbps: 185 min.
128GB card 160 Mbps: 105 min. 110 Mbps: 150 min. 60 Mbps: 280 min. 45 Mbps: 375 min.
256GB card 160 Mbps: 210 min. 110 Mbps: 305 min. 60 Mbps: 565 min. 45 Mbps: 755 min.
A variable bit rate is applicable in each case. LENS Canon 15x Zoom, 8.3-124.5mm (35mm equivalent 25.5-382.5mm), f/2.8-4.5 FOCUSING SYSTEM Dual Pixel CMOS AF, Contrast AF The detection range for CMOS AF is approx. 80% (vertical) x 80% (horizontal) of the entire field of view. MANUAL EXPOSURE Yes MAX SHUTTER SPEED 1/2000 MINIMUM FOCUSING DISTANCE 10mm at wide end, 60cm across entire zooming range WHITE BALANCE Auto, Preset (Daylight, Tungsten), Color Temperature Settings (2,000–15,000K), Set (1/2) FRAME RATE 60p, 30p, 24p MINIMUM ILLUMINATION P Mode: Approx. 1.7 lux (shutter speed: 1/30 sec., 60p with auto slow shutter on) Low Light Mode: Approx. 0.1 lux (shutter speed: 1/2 sec.) GENLOCK TERMINAL Yes TIMECODE TERMINALS Yes IMAGE STABILIZATION Optical system (lens shift) + electronic stabilization (Image rotation and camcorder movements in the yaw and pitch directions are electronically corrected.) Modes: Dynamic IS, Powered IS, Standard IS, IS Off FILTER DIAMETER 58mm VIEWFINDER 0.46-inch wide color OLED display, approx. 1.77 million dots, approx. 100% field of view LCD SCREEN 4.0-inch wide LCD and wide view angle, wide color range supported (Approx. 1.23 million dots) MICROPHONE Stereo (using electret condenser microphone) RECORDING MEDIA SD/SDHC/SDXC Card (2 slots): XF-HEVC/XF-AVC movies and photos. Menu settings can also be recorded. USB TERMINAL mini-B receptacle and Hi-Speed USB supported (output only) VIDEO TERMINAL 3.5mm stereo mini-jack, HDMI™ mini connector, 12G-SDI terminal AUDIO TERMINAL 3.5mm stereo mini-jack, XLR 3-pin jack (two channels), HDMI™ mini connector, headphone jack, 12G-SDI terminal HDMI TERMINAL HDMI™ mini connector AV MINI TERMINAL/HEADPHONE TERMINAL 3.5mm stereo mini-jack OPERATING TEMPERATURE RANGE For Performance: Approx. 0-40° C, 85% (relative humidity) For Operation: Approx. -5-45° C, 60% (relative humidity) DIMENSIONS Approx. 6.4 x 8.3 x 14.9 in. / 162 x 210 x 378mm (excluding lens hood, mic holder unit and eyecup) Approx. 7.5 x 10.2 x 17.0 in. / 191 x 258 x 433mm (including lens hood, eyecup and mic holder unit) WEIGHT Approx. 5.86 lbs. / 2660g (including grip belt; excluding hood, eyecup and shoulder pad) 12G-SDI TERMINAL Yes ETHERNET TERMINAL Ethernet connector (RJ-45) (supports 1000BASE-T)
